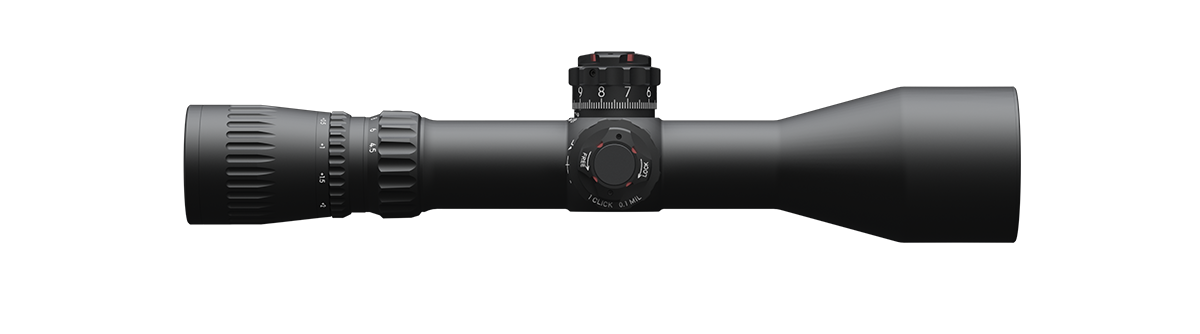

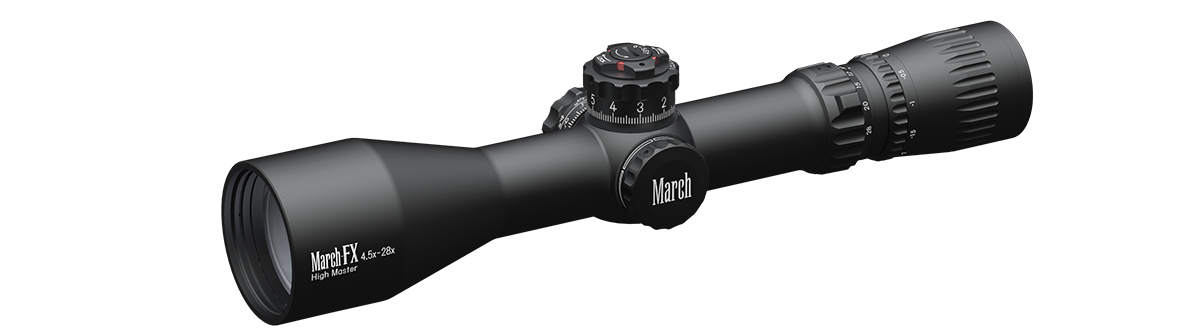

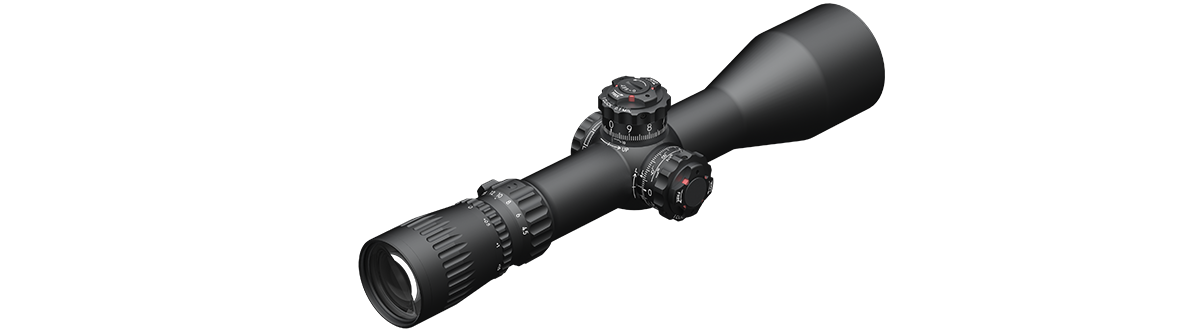

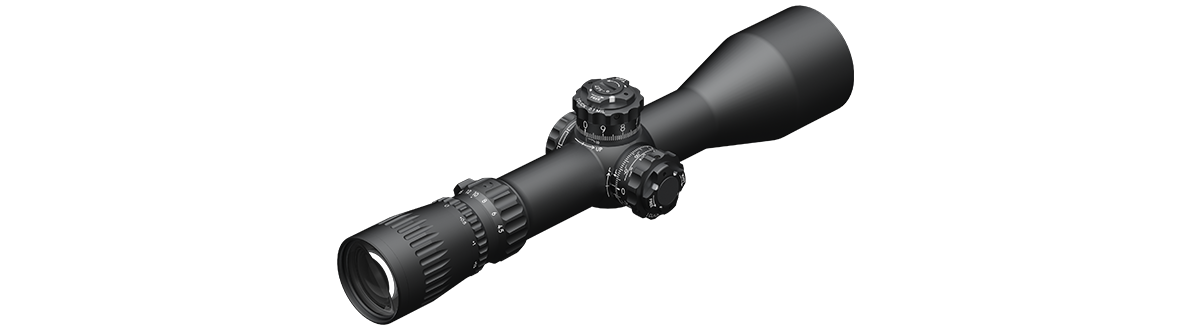

March 4.5x-28×52 Optics with Locking Shuriken Turrets in MOA or MIL – NEW FOR 2023

This sight is designed with the competition in practical precision shooting in mind, but the ease of use and compact configuration make it equally comfortable on almost any shooting platform. The short length (318 mm; 12.5”) and lightness (845 g; 29.8 oz) of the March-FX 4.5x-28×52 mm are outstanding.
The March-FX “Wide Angle” 4.5x-28x52mm optical sight has eight magnification factors, including the highest magnification factor in the first focal plane configuration (FFP) optical sight made to date. The scale value of the M-Rad reticle remains constant throughout the zoom range. It’s easy to scope the target without thinking about where to set the zoom range. In addition, with the ability to set an arbitrary position as the zero elevation point (setting 0 device), the shooter will never lose their initial calibration. This scope is designed to eliminate optical aberration without compromise by using high-end Extra Low Dispersion (ED) lenses.

NEW FOR 2023

・6.2-fold increase in FFP
・34mm diameter body
・52mm lens
・Wide-angle eyepiece: 25 degrees
・Anti-drift temperature lens system
・High Master lens system (Super ED lenses)
・Side focus 10 yards – infinity
・The sight body is completely machined from aluminum block
・All Japanese metal parts with no plastic parts, except for the minimum essentials such as insulator
・Filled with argon gas for internal stability
・Quick focusing eyepiece
・6 level lighting module

Temperature Anti-Drift Lens System
In the latest optical systems, a new lens material has been developed to accommodate changes in environmental temperature by altering the refractive index of the lenses. This new lens material has been adopted to create a more stable lens system that naturally adapts to changes in temperature to maintain focus and clarity over a wide range of conditions.
Wide Angle Eyepiece
25 Degree Wide Angle Eyepiece will enhance FOV throughout the 6.2 magnification range. Compared with our standard scopes with 20 degree, this is wider by 25%.
Super ED lenses
By incorporating Super ED lenses (High Master lens system), we are able to reduce the chromatic aberration.
Fast focus eyepiece
The diopter adjustment mechanism has been improved so you can adjust the eyepiece to your eye faster than ever before.
Download more information
Please check this article for more detailed information;
News & Info;
https://marchscopes.com/news/7170/
Product Brochure;
https://marchscopes.com/wp-content/uploads/2021/05/D28HV52WF_leaflet_20210317.pdf
Dials
0.1 MIL Type
1 Click Adjustment : 0.1MIL (1cm @100m)
10 MIL turret revolution (100cm @100m)
0-set on the Elevation turret
Elevation dial is a tactical type with Shuriken lock.
Windage dial is a tactical type with Shuriken lock.
6-level illumination module is a standard specification for this model.
1/4 MOA Type
1 Click Adjustment : 1/4MOA
20 MOA per 1 turn
0-set on Elevation turret
Shuriken lock elevation and windage turrets. “Shuriken” is a star-shaped throwing knife used by Ninja. Red is for the locked state and white is for the unlocked state.
Reticles

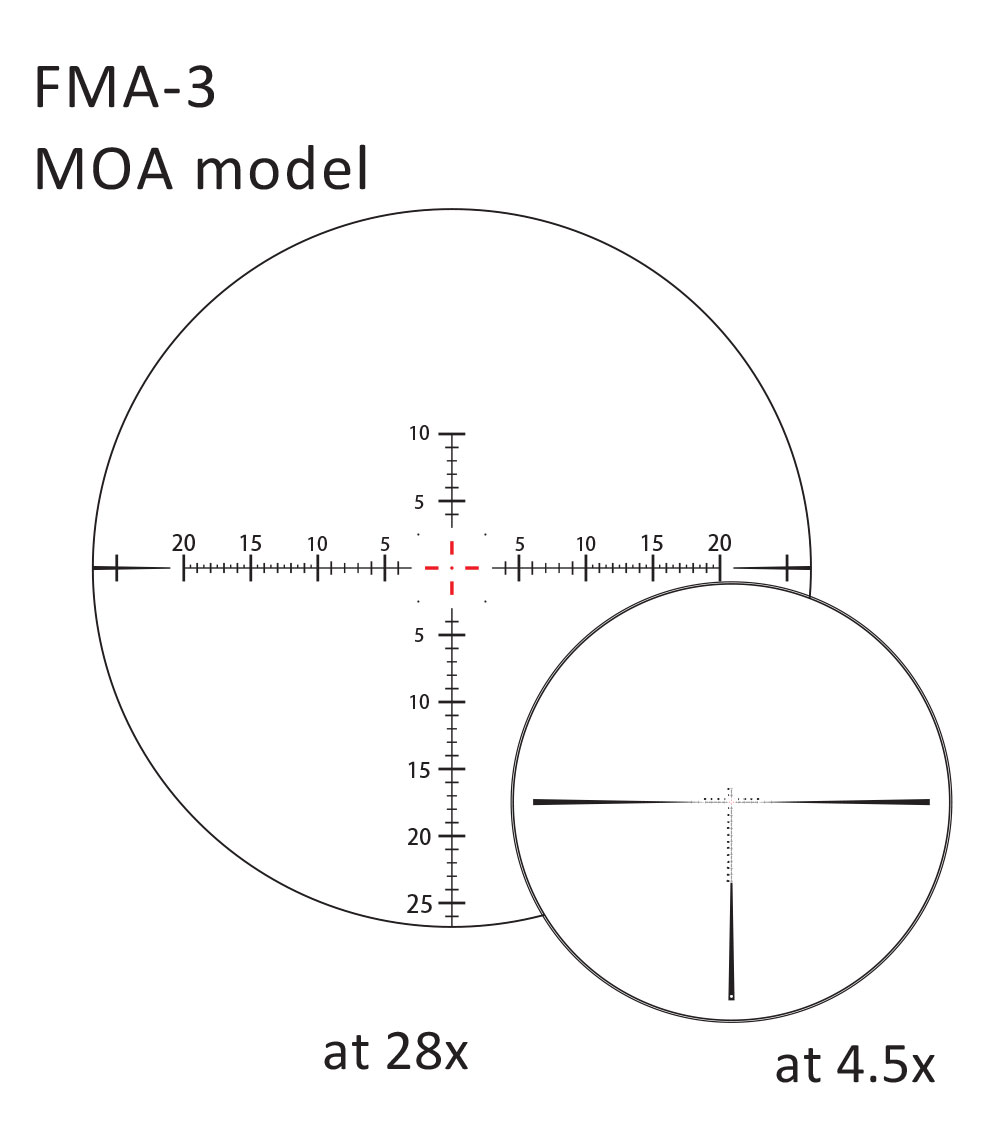

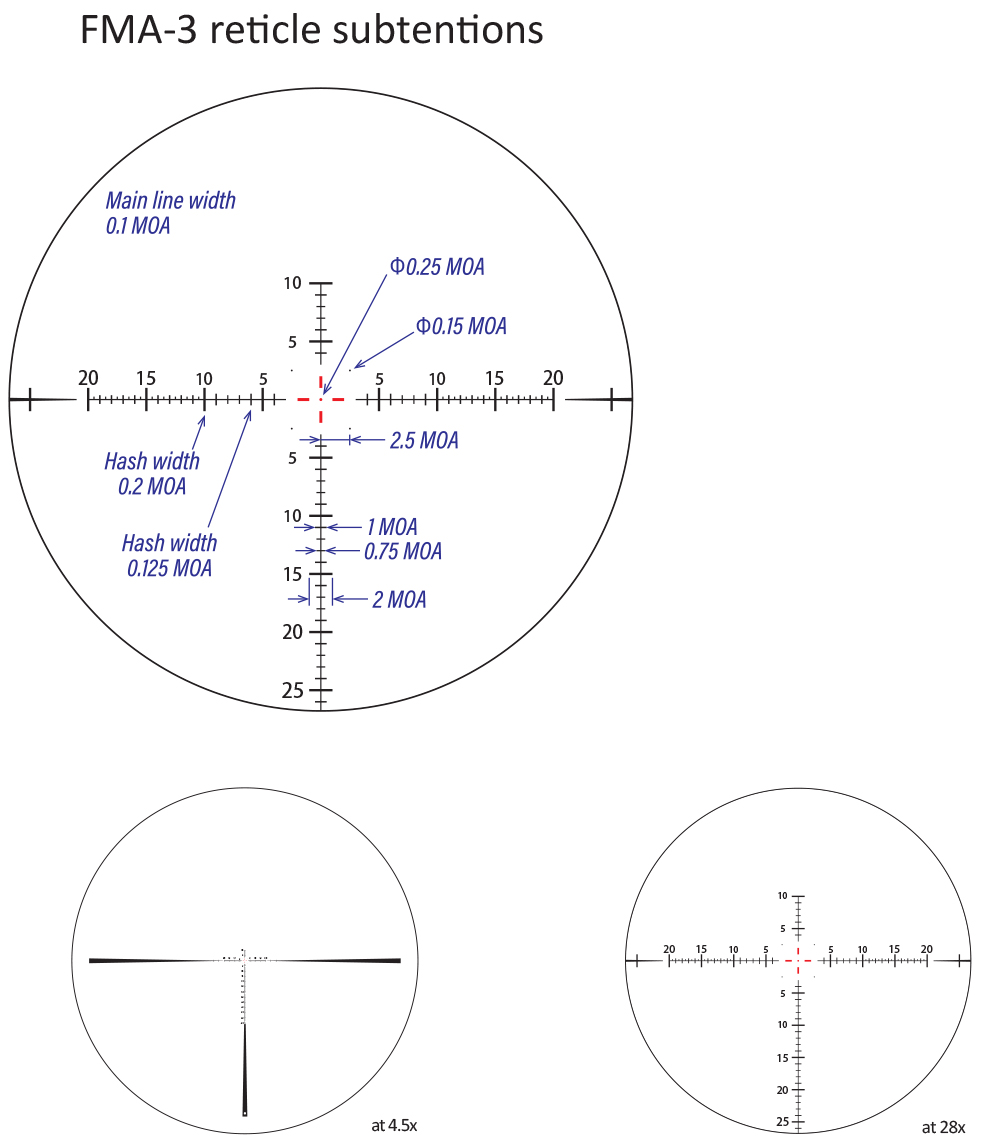

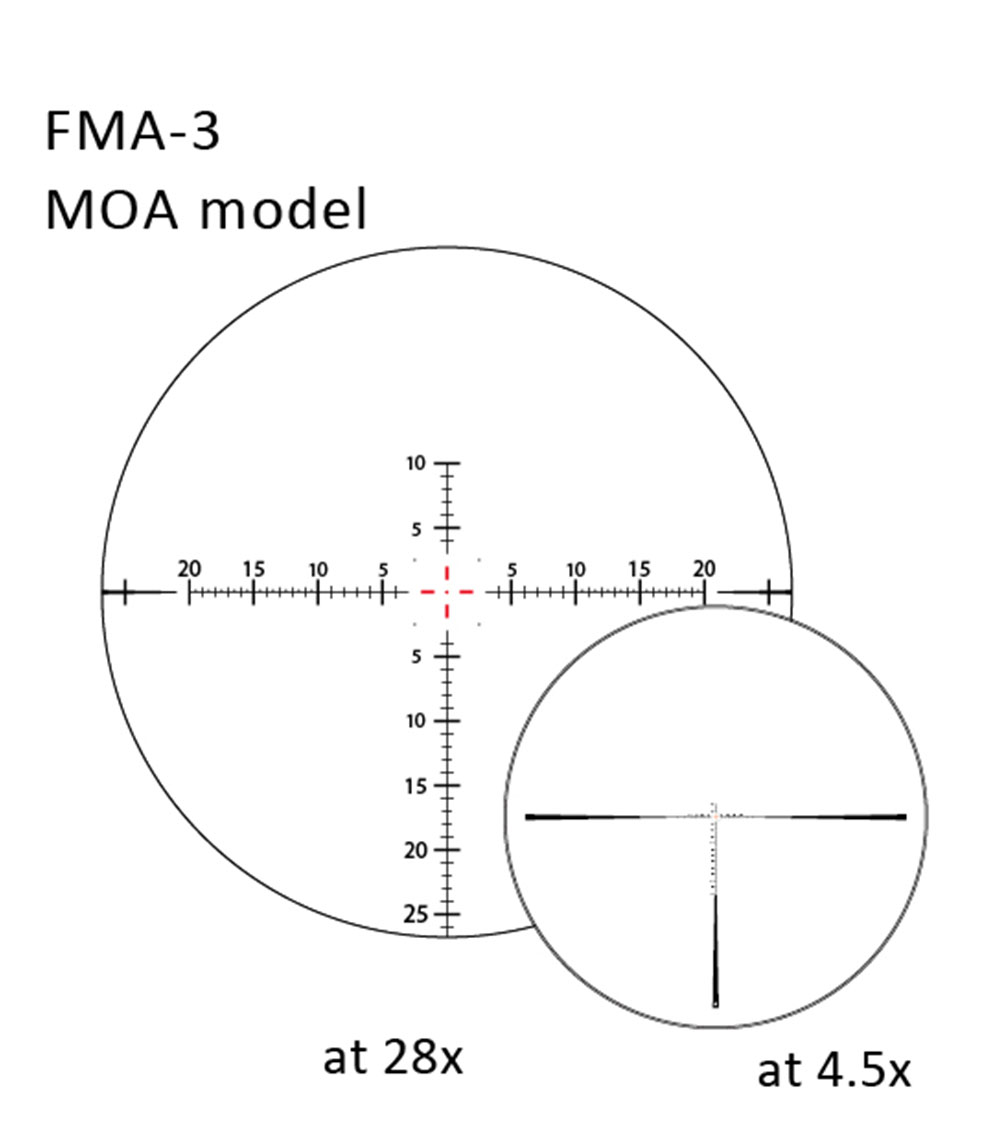

MOA – FMA-3

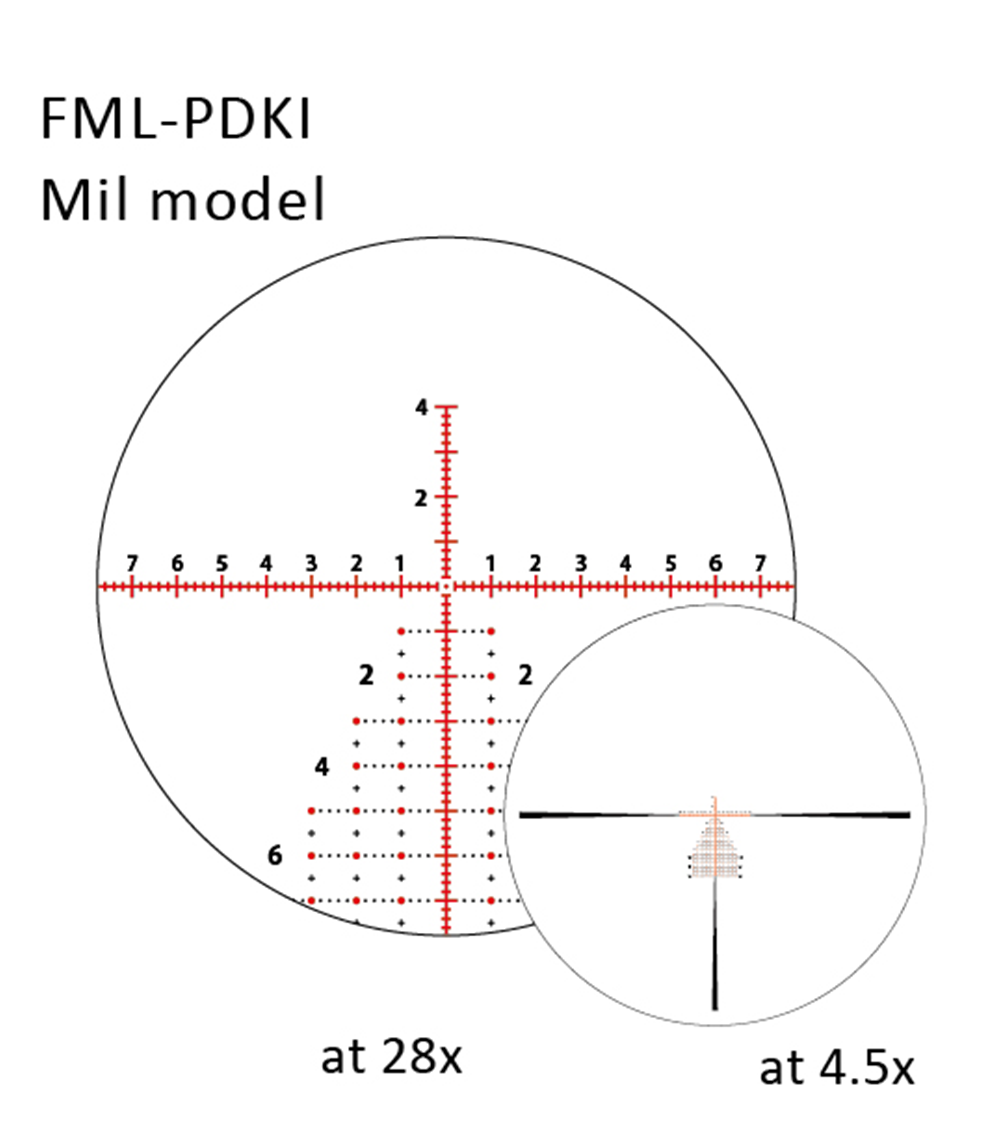

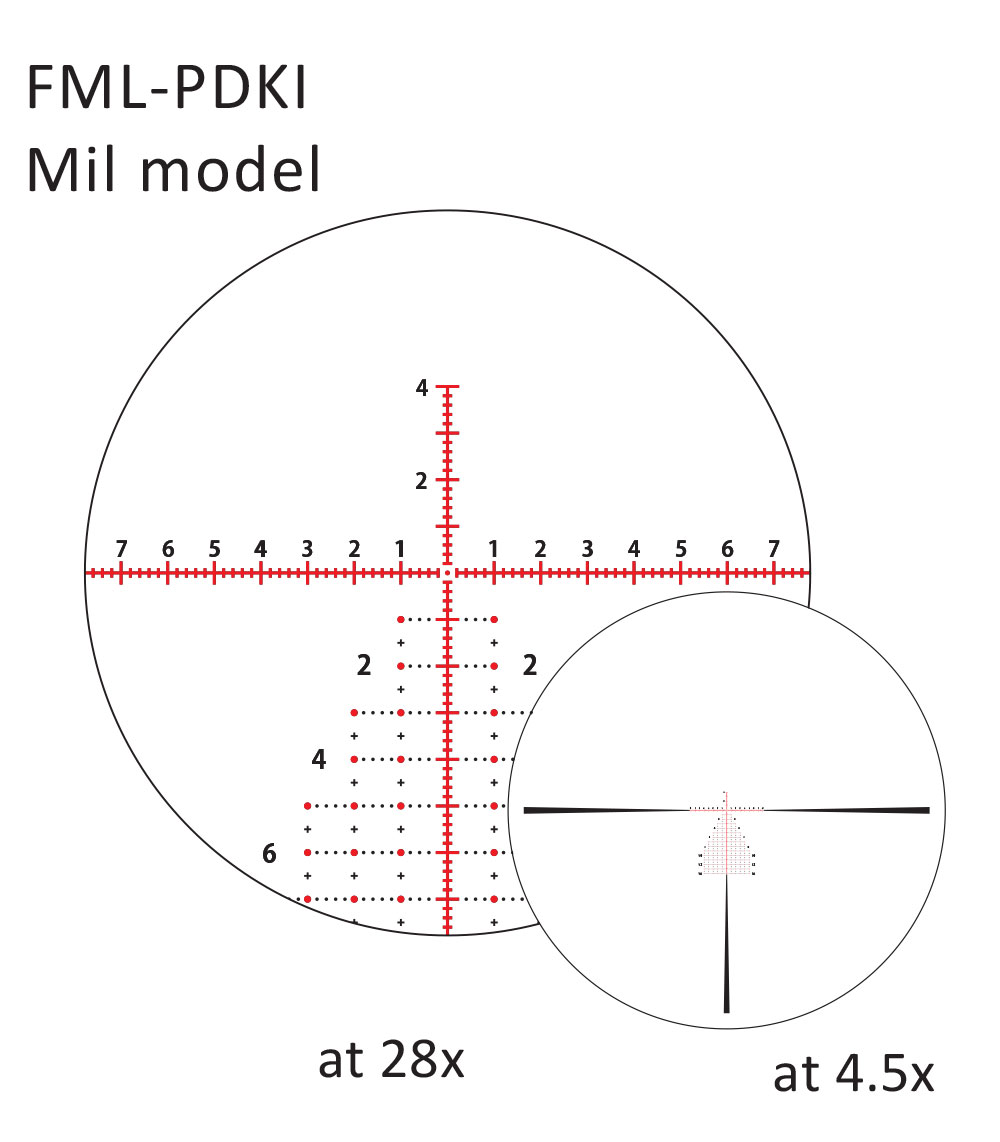

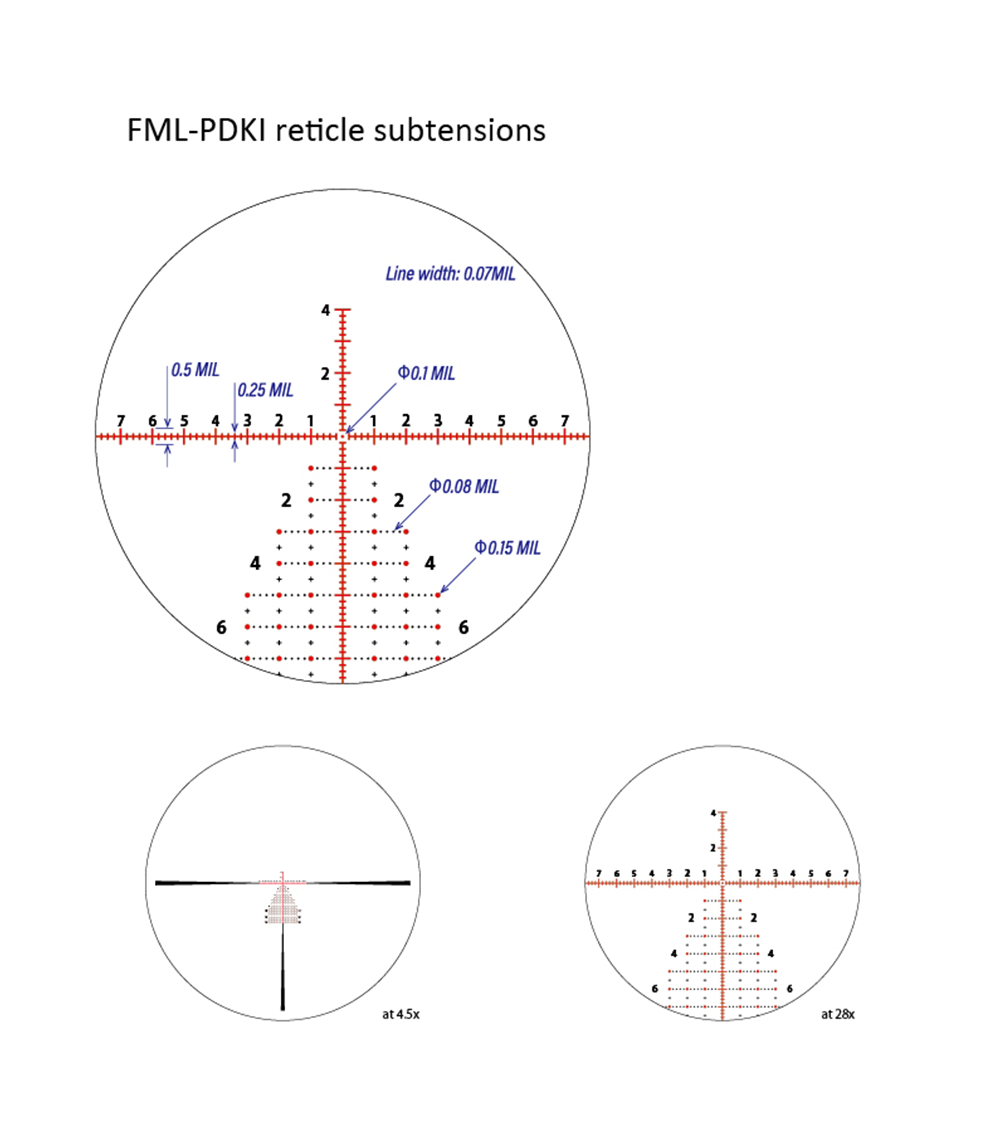

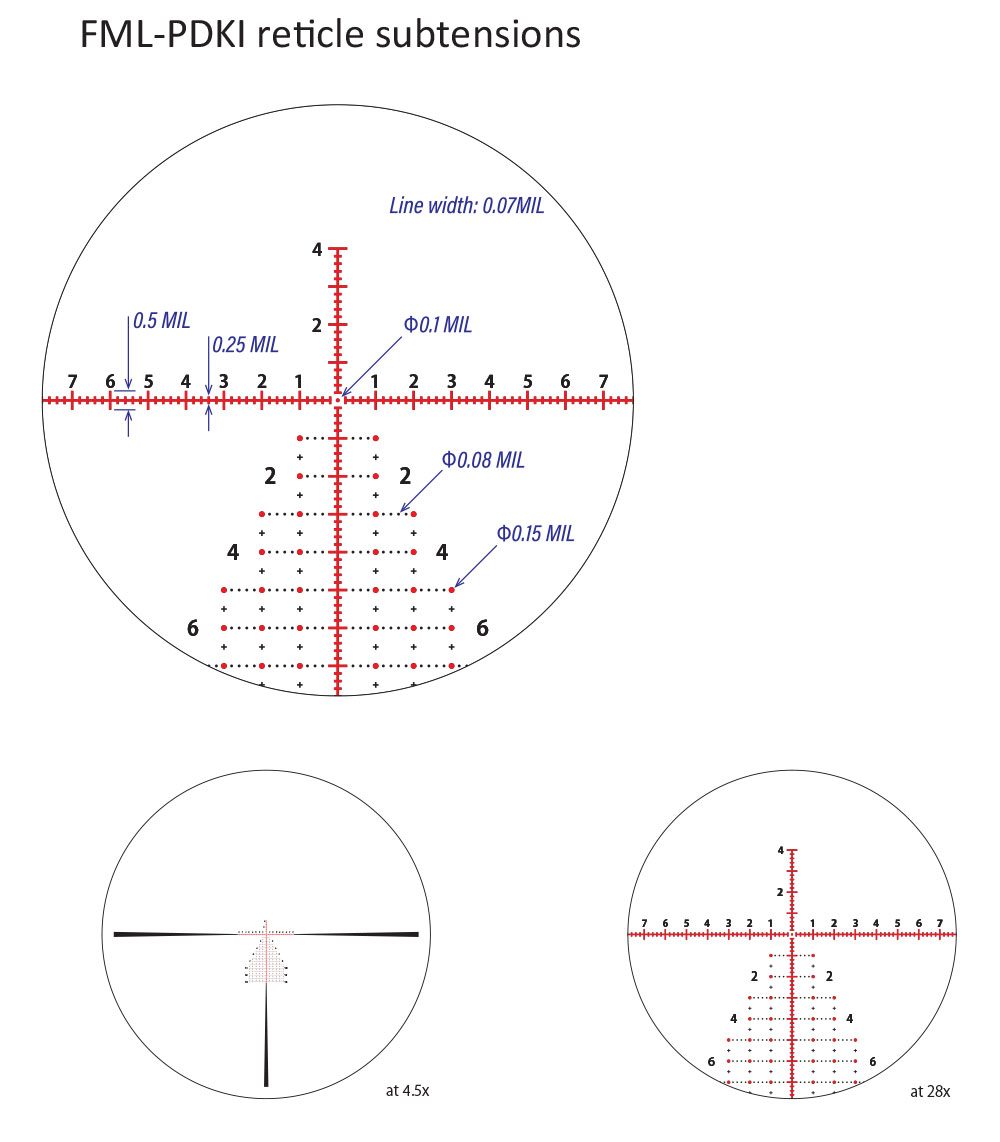

MIL – FML-3 – FML-TR1 – FML-PDKI – FML-PDK – FML-LDK
